Plastic Geogrid in Railway and Highway Construction

Plastic geogrid is mainly manufactured from polypropylene or high density polyethylene, which are all UV stabilized, chemical and biological resistance. The plastic geogrid is mainly used in the construction of roadways, highways, railways, slopes for ground stabilization and subgrade reinforcement. The plastic geogrid is extruded into sheet and then punched into regular mesh pattern and finally stretched. According to the stretched direction, it can be divided into uniaxial plastic geogrid and biaxial plastic geogrid.

Uniaxial plastic geogrid

Uniaxial plastic geogrid, made of high molecular polymer, is extruded into sheet and then punched into regular mesh pattern and finally stretched in the transverse direction. This production can ensure the structural integrity of the geogrid. The main materials of the uniaxial plastic geogrid are high density polyethylene and polypropylene, which are highly oriented and resists elongation when subjected to heavy loads for long period of time.

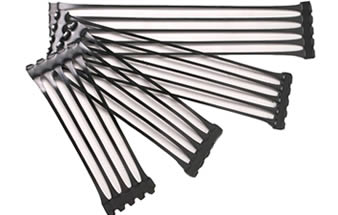

Four different sizes of uniaxial plastic geogrid on the white background.
Uniaxial plastic geogrid is stretched in the transverse direction.

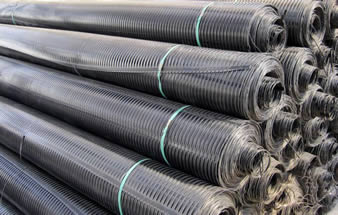

Several rolls of uniaxial plastic geogrid are placed on the ground.
The uniaxial plastic geogrid is usually packed in rolls and the length can be 50m or 100m.
PP Uniaxial Plastic Geogrid Technical Sheet
Item TGDG50 TGDG60 TGDG80 TGDG110 TGDG150 TGDG200 TGDG260
Material Polypropylene (PP)
Yield Tensile Strength ≥ (KN/m) 50 60 80 110 150 200 260
Tensile Strength in 2%Strain ≥ (KN/m) 12 17 26 32 62 85 94
Tensile Strength in 5%Strain ≥ (KN/m) 28 35 48 64 110 145 185
Strain Yield Tensile Strength ≤ (%) 10
Roll Length (m) 100 50
Roll Width (m) 1-3
HDPE Uniaxial Plastic Geogrid Technical Sheet
Item TGDG35 TGDG60 TGDG80 TGDG120 PPGG150 TGDG160 TGDG200
Material High Density Polyethylene (HDPE)
Carbon Black ≥ (%) 2
Yield Tensile Strength ≥ (KN/M) 35 60 80 120 150 160 200
Tensile Strength in 2%Strain ≥ (KN/M) 9 16 23 35 45 47 58
Tensile Strength in 5%Strain ≥ (KN/M) 18 31 44 65 92 93 115
Strain Yield Tensile Strength ≤ (%) 12
Roll Length (m) 75 30
Roll Width (m) 1 or 2

Features

  • Can be used in the wet or dry environments.
  • UV stabilized.
  • Used with variety of materials, including soil and concrete.
  • Resistance to the low temperature. It can be used in the minus 45 degree to 50 degree.
  • Resistance to the long term chemical or biological degradation.
  • High stability and bearing capacity to increase service life.
  • High tensile loads in the transverse direction.
  • Prevent the material loss caused by the roadbed distortion and crack.
  • Lightweight for quick installation and low construction cost.

Applications

  • Due to the features of resistance to the low temperature, the uniaxial plastic geogrid is ideal for the frozen soil in the northern areas.
  • It can be used in the road, highway, railway, slop construction to improve the load capacity and extend the service life of the road.
  • Because of the resistance to the chemical and biological and the interlocking with the infill materials, the uniaxial plastic geogrid can be used in the retaining wall and dam construction for stability and durability.

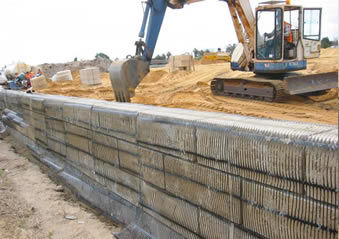

Uniaxial plastic geogrid is covering the retaining wall and an excavator is working.
Uniaxial plastic geogrid can be used in the retaining wall construction for the reinforcement of the wall and stability.

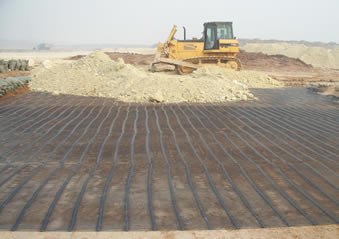

Uniaxial plastic geogrid is covering the ground and a bulldozer is laying the soil on the road.
Uniaxial plastic geogrid can be used in the road, highway and railway construction for ground reinforcement and subgrade stabilization

Biaxial plastic geogrid

Similar with the uniaxial geogrid, the biaxial plastic geogrid is extruded into sheet and then punched into regular mesh pattern. But different from the stretching, the biaxial plastic geogrid is stretched in longitudinal and transverse directions. The material of the biaxial plastic geogrid is polypropylene, which is UV stabilized and chemical resistance. Biaxial plastic geogrid is mainly used in the road constructions for soil reinforcement and subgrade stabilization, it can also be used in the mining industries as the ceiling netting.

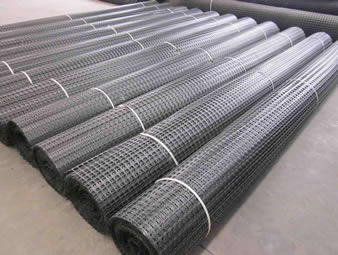

Eleven rolls of biaxial plastic geogrid on the ground.
Biaxial plastic geogrid is supplied in rolls.

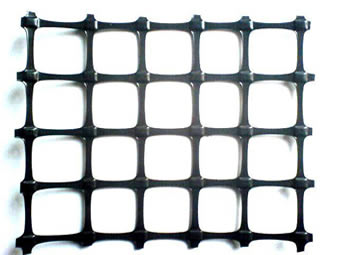

A piece of biaxial plastic geogrid on the white background.
Biaxial plastic geogrid is stretched in the longitudinal and transverse directions.
Biaxial Plastic Geogrid Technical Sheet
Item TGSG 15 TGSG 20 TGSG 30 TGSG 40 TGSG 45
Material Polypropylene (PP)
Minimum Carbon Black ≥ (%) 2
Tensile Strength in 2%Strain ≥ (KN/M) MD 5 7 10.5 14 16
CMD 5 7 10.5 14 16
Tensile Strength in 5%Strain ≥ (KN/M) MD 7 14 21 28 32
CMD 7 14 21 28 32
Yield Tensile Strength ≥ (KN/M) MD 15 20 30 40 45
CMD 15 20 30 40 45
Strain Yield Strain ≤ (%) MD 13 13 13 13 13
CMD 13 13 13 13 13
Dimensions Roll Width (m) 3.95 3.95 3.95 3.95 3.95
Roll Length (m) 50 50 50 50 50
Roll Weight (kg) 38 50 68 96 110

Features

  • High tensile strength in both longitudinal and transverse directions.
  • Convenient to use and reduce the construction cost.
  • Increase the bearing capacity of the subgrade.
  • Reduce the soil erosion.
  • UV stabilized.
  • Resistance to the chemical and biological corrosion.

Applications

  • The biaxial plastic geogrid is usually used in the roads, highways and railways construction for ground reinforcement and subgrade stabilization.
  • The biaxial plastic geogrid can be used in the slop construction to reinforce the soils and prevent the soil erosion.
  • The biaxial plastic geogrid can be used in the tunnel of mines instead of steel wire mesh. It is fire-retardant and anti-statics with large mesh size.

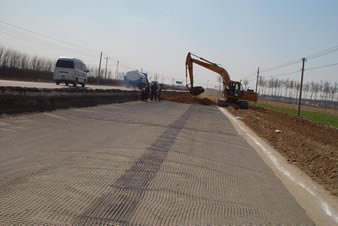

The biaxial plastic geogrid is covering the road and an excavator is laying the soil on the ground.
Biaxial plastic geogrid is commonly used in the road construction for subgrade stabilization.

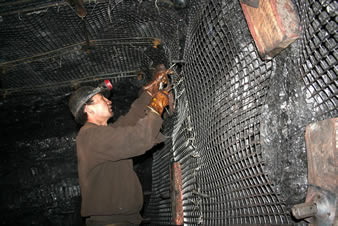

A worker is fixing the biaxial plastic geogrid on the mine tunnel.
Biaxial plastic geogrid can be used in the mine tunnel for flame and static resistance.

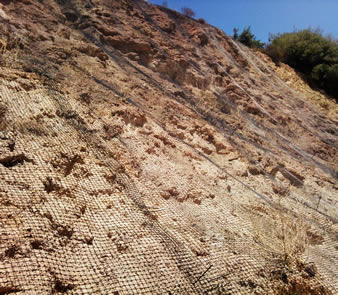

Biaxial plastic geogrid is covering the slope.
Biaxial plastic geogrid is widely used in the slope to prevent the soil erosion.

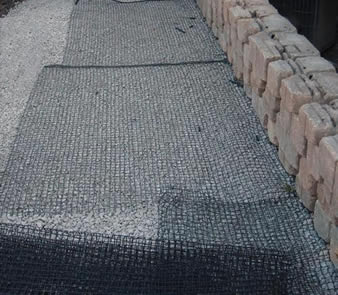

Biaxial plastic geogrid is covering the gravel and some large stone is on the geogrid.
Biaxial geogrid can be used in the retaining wall constructions for stability.
